| This equipment has been applied to the welding of the intake pipe, and it is divided into 2 temperature control areas. |

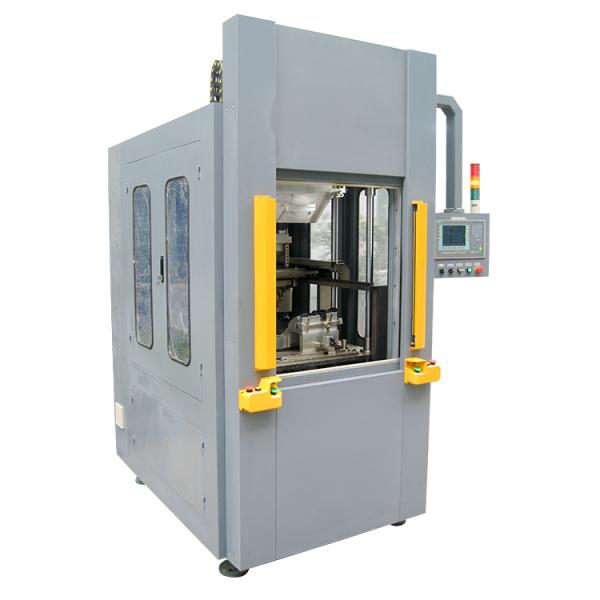

| Horizontal hot plate welding machine, double hot plate welding, horizontal welding is adopted according to the product structure.Similar products can be replaced by the fixture. |
| 10 sets of welding procedures can be pre-stored, and the data interface can be linked to the production line. |
| MISUMI original heating device. Hot plate temperature control, with temperature self-check, closed loop control, multi-point independent temperature control, temperature control accuracy can reach ±2 degrees. |

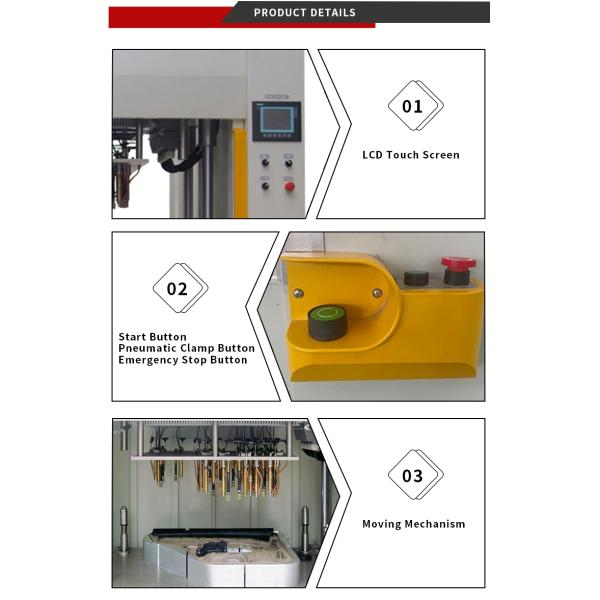

| Equipped with man-machine interface, Chinese and English interface operation is more intuitive. |
| Adopt SMC cylinder/Rongda bearing. |
| The machine's integral square tube and sheet metal are welded to strengthen the overall rigidity and make it more stable during operation. |
| The production cycle is 35S-40S. |
| Safety: The equipment is equipped with a protective grating and a safety baffle for scalding safety warning. |
| Authority management: The device sets the administrator and operator authority. |
| The height of the working table is 900MM |
| The device is started by two hands. |
| Indiscriminate operation verification (the device is protected if it does not follow standard procedures). |
| Production capacity record. |
| Alarm fault code and its record.. |
| Man-Machine Interface-The visual information of the man-machine interface includes current operation steps, alarm information and solutions.. |
| IMS interactive function: support Ethernet communication, the device has a QR code scanning and identification function, the hot plate temperature, displacement, and hot plate time data can be recorded and the data needs to be pushed to the company's IMS system. (This function is customized according to customer requirements.) |
| The equipment has a wide table surface and a desktop man-machine interface, which is easy to operate and debug. |
| The fixture of the equipment adopts simple, fast and reliable fixing methods such as positioning pins, without special tools. |
| The pneumatic part and sensor part of the fixture of the equipment are designed with quick plug-in |
| The quick mold change time is 10-15minutes. |
| The equipment tool is equipped with sensor recognition, the model selected by PLC is different from the current fixture, and an alarm is required. |
| Locking function-when the product is detecting NG, the product is locked in this station (requires designated personnel to unlock) |
| Equipment alarms, fault information or corresponding faults are displayed on the man-machine interface. |
| Control system voltage DC24. |
| I/O- Each station I/O has a 10% margin for future expansion. |
| Equipment dimensions:(L)1200MM*(W)800MM*(H)1800MM. |
| Maximum mold capacity of equipment:(L)550MM*(W)400MM*(H)350MM. |
| Power : 3-phase 380V 50Hz, can be customized. |
| Air source specifications: 4Kg/cm2-6Kg/cm2(0.4MPA-0.6MPA). |
| Adaptable to ambient tmperature : -5ºC~40ºC |
| Adaptable to ambient humidity : 20%~80% |
| The noise of the transmission part does not exceed 70 decibels |
| Total Power:3KW |
